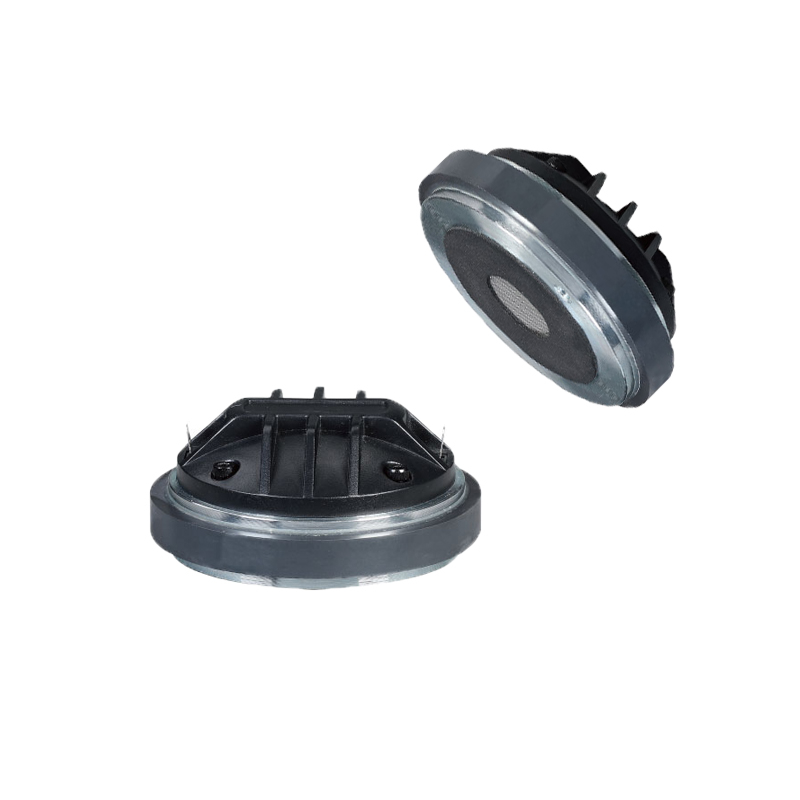

T1-44-Y100-PC8, Ferrite Compression Driver, 44mm voice coil

 1.73 inch diaphragm,1 inch exit throat driver
 80 Watt continuous program power handling
 105 dB sensitivity
 700Hz-18KHz frequency range
 Ferrite magnet assembly

Quantity:
  • T1-44-Y100-PC8
  • BOWAY
  • 85182900


PRECISION TRANSDUCERS

T1-44-Y100-PC8

DRIVER



FEATURES

n  1.73 inch diaphragm,1 inch exit throat driver

n  80 Watt continuous program power handling

n  105 dB sensitivity

n  700Hz-18KHz frequency range

n  Ferrite magnet assembly






SPECIFICATIONS (General specifications)


NOMINAL DIAMETER: 1 inch / 25.4 mm                             RATED IMPEDANCE: 8 ohm

AES POWER HANDLING: 40 W                                         MAX. POWER HANDLING: 80 W

SENSITIVITY: 105.0 dB                                                             FREQUENCY RANGE 700Hz-18KHz

MINIMIM IMPEDANCE: 6.4 ohm                                             VOICE COIL DIAMETER:  1.73 inch / 44 mm

VC WINDING MATERIAL: Copper                                          MAGNETS:  Ferrite

OVERALL DIAMETER:  100 mm / 3.94 inches                          THROAT DIAMETER:  25.4 mm / 1 inch

DEPTH:  45 mm / 1.77 inches                                                   MIN.CROSSOVER FREQUENCY:  2 KHZ















未标题-1

Q: How Maker hart quote?
A: We will provide FOB price and all based on minimum order quantity (MOQ).


Q: How can I get your quotation?
A: Please provide us information as below:
1. Item Number.
2. Quantity.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.


Q: How long is the lead time after placing the order?
A: Lead time depends on a number of factors, such as the stock and production status. Usually the sample orders take about AROUND 1 WEEK, and the mass orders take AROUND THREE WEEKS after the order is placed.


Q: How long does the delivery time take?
A: We send our goods from JIANGMEN, Guangdong, and the delivery time depends on the location of your delivery address, and the shipping way will be Express Service, Sea Shipping, Air Shipping for you reference.


Q: What's your standard package?
A:Carton packaging outside, and also can be with flight case if you need.


Q: Could you do OEM/ODM for customers?
A: Yes, from the product design to packaging, our engineers can design exactly as your requirements. Any kind of logo printing or design is available if your order quantity is good .
