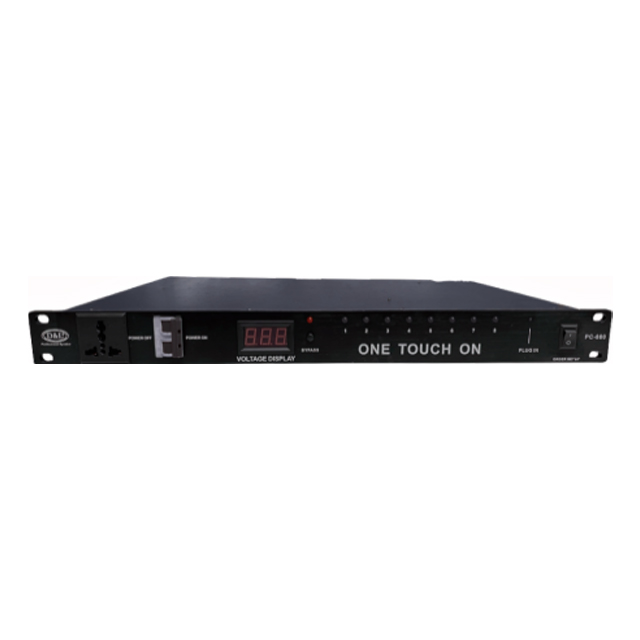

The PC-880 is an eight-channel sequential power distributor in a 19-inch, one rack unit chassis. Each of the eight outlets is switched by its own 30 A power relay, released one second apart, so a complete rack comes up over roughly eight seconds and shuts down in reverse order from a single button on the front panel.
PC-880
D&L
Key Features
» | Eight independently switched outlets, one 30 A power relay per channel, in a 19 in 1U chassis |
» | One second sequencing delay per channel, approximately eight seconds for the full rack, reverse order on shutdown - eliminates cumulative inrush and the switch-off thump at the loudspeakers |
» | Single-button on/off for the whole rack instead of eight separate switches operated in the correct order |
» | Selectable sequenced or bypass operation - bypass for immediate power-up where the eight-second chain cannot be waited out |
» | Three protection layers: resettable overload breaker, short-circuit isolation at the unit, and surge absorption |
» | AC 220 V plus or minus 10 per cent (198 - 242 V), 50/60 Hz - centred on the Vietnamese mains standard rather than a 230 to 260 V European centre |
» | Three-digit LED voltmeter reading the incoming supply in real time, plus an individual status indicator for each of the eight channels |
» | Non-sequenced universal outlet on the front panel for load testing or ancillary equipment without waiting for the chain |
» | Adjustable switching order and rear wiring code marked on the chassis for safe service |
