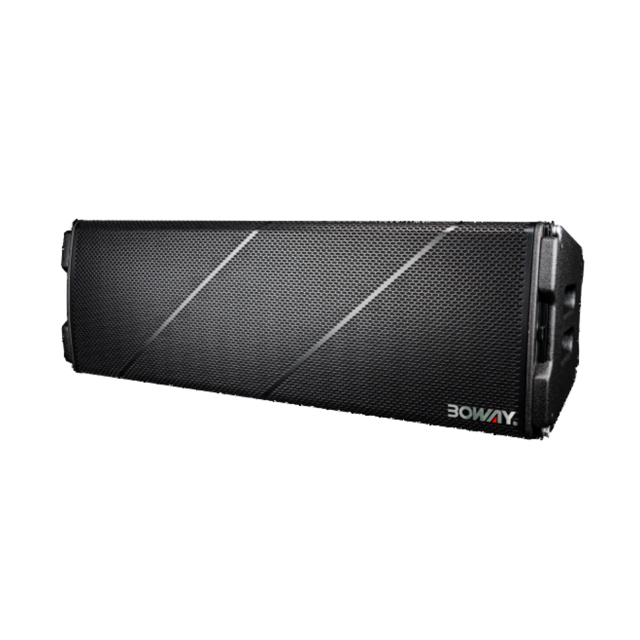

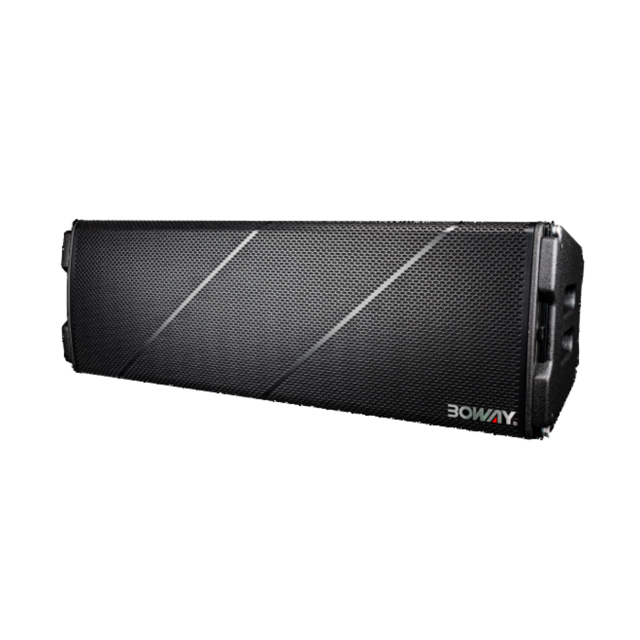

LM-312 Dual 12 inch three way line array speaker

LM-312, dual 12 inch three way line array speaker, with its Polyurea paint, perfect for outdoor performance.

Description

Feature

Compact, high performance three-way line array speaker

High-power system with 12in LF , four 6.5in MF and 2*3in HF drivers.
Sanding texture paint for touring jobs

Applications

Touring sound reinforcement
Stadiums, arenas, concert halls and theaters
Medium/large-scale events

Specifications

Type	Compact three-way line array speaker
Model name	LM-312
Frequency Response	70Hz-20KHz
Drivers	Two 12”/3”VC ND LF Woofers, four 6.5" ND MF midrange, and two 3”/3”VC ND HF driver,
Rated Power	HF/MF/LF: 200W/400W/800W (RMS) HF/MF/LF: 400W/800W/1600W (RMS)
Sensitivity	HF/MF/LF: 116/100/100 dB @ 1m/1w
Maximum SPL	HF/MF/LF: 136/126/126 dB @ 1m/1w
Nominal Impedance	8 Ω
Finish	Sanding texture paint
Protective Grille	Black perforated steel
Connectors	2×Neutrik NL4
Fittings	Proprietary rigging system
Dimensions(mm)	(W) 1100 mmx(H) 370 mmx(D) 480mm
Weight	51KG
