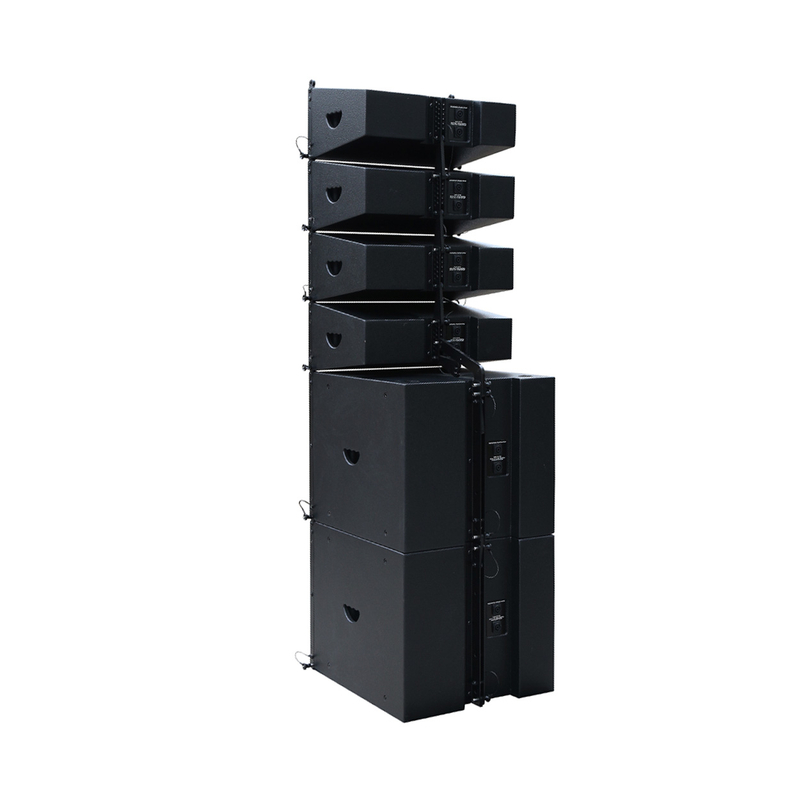

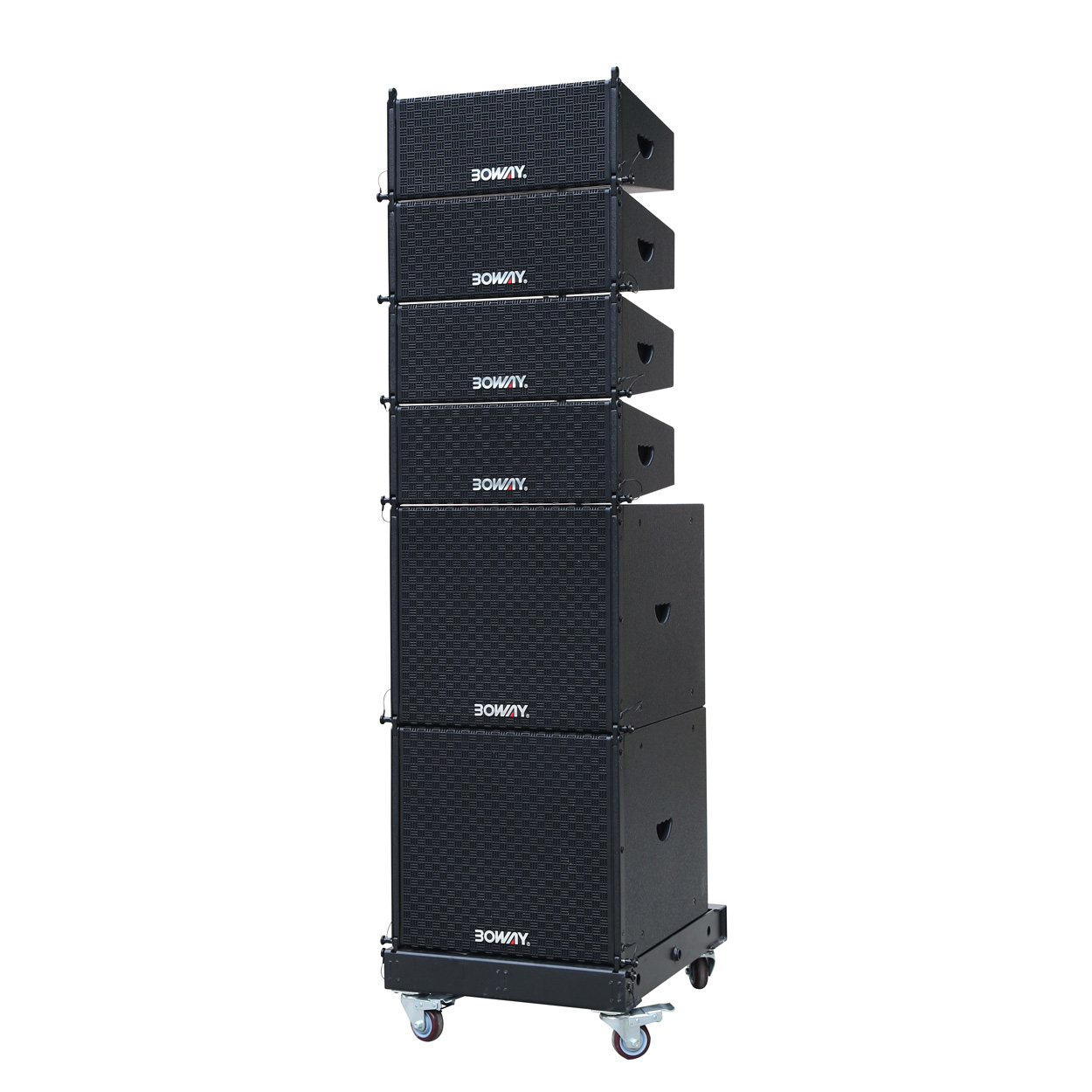

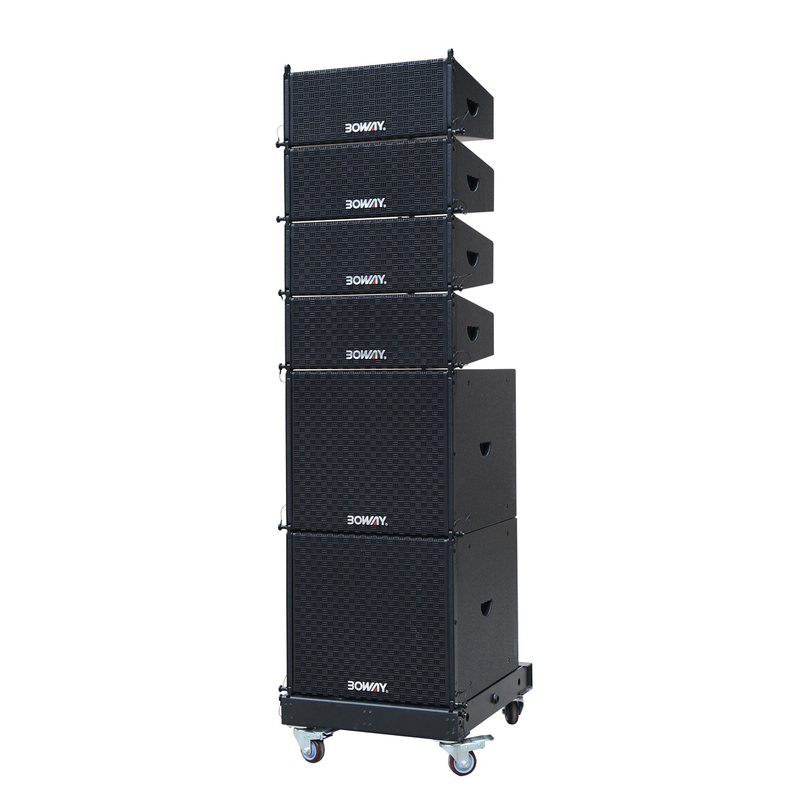

LB-206 & LB-15BS Dual 6" two way line array speaker set

Compact, high performance two-way line array speaker
High-power system (119dB peak SPL @1M) with 6in LF, and 1.75in HF drivers.
Waterproof paint for touring jobs

Quantity:
  • LB-206
  • BOWAY
  • 85182200

Description


Feature

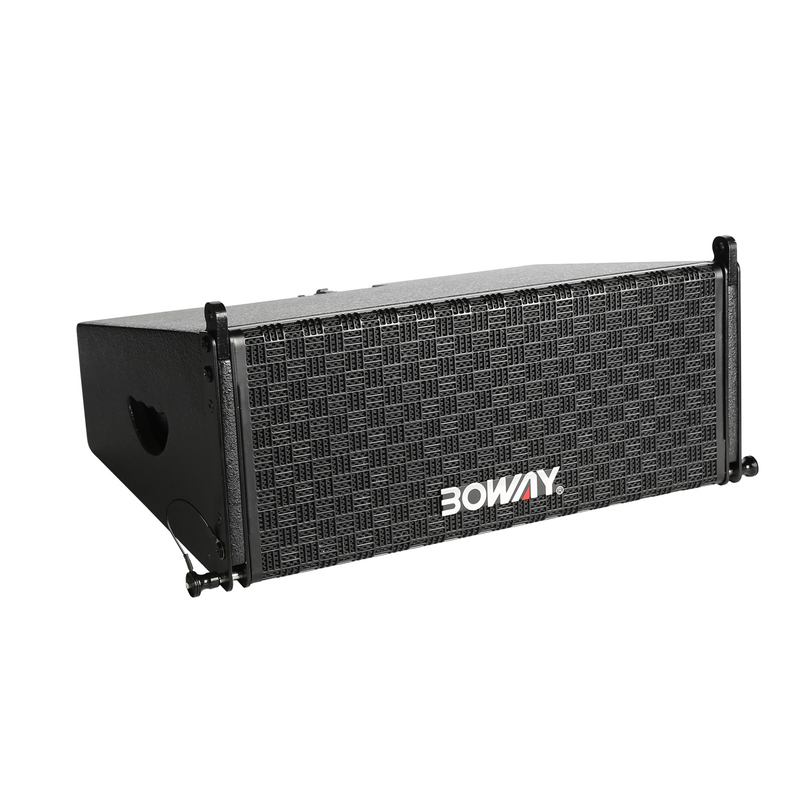

Compact, high performance two-way line array speaker

High-power system (119dB peak SPL @1M) with 6in LF, and 1.75in HF drivers.
Waterproof paint for touring jobs



Applications

Smaller theatres
Houses of worship, Ballrooms, Corporate AV, Houses of worship
Touring theatrical productions



Specifications





Type

Compact two-way line array speaker

Model name

LB-206

Frequency Response

85Hz-18KHz

Drivers

Two 6”/1.97”VC LF Woofers, one 1.75”/1.75”VC   HF neodymium driver

Rated Power

200W(RMS), 400W(Peak)

Sensitivity

96dB @ 1m/1w

Maximum SPL

119dB peak

Nominal Impedance

16Ω

Finish

waterproof paint

Protective Grille

Black perforated steel

Connectors

2×Neutrik NL4

Fittings

Proprietary rigging system

Dimensions(mm)

(W)505mmx(H)230mmx(D)350mm

Weight

14.4KG



Type

single 15” horn loaded rigging subwoofer

Model name

LB-15BS

Frequency Response

30Hz-600Hz

Drivers

One 15” bass driver

Rated Power

600W(RMS), 1200W(Peak)

Sensitivity

100dB @ 1m/1w

Maximum SPL

128dB peak

Nominal Impedance

Finish

waterproof paint

Protective Grille

Black perforated steel

Connectors

2×Neutrik NL4

Fittings

Proprietary rigging system

Dimensions(mm)

(W)505mmx(H)475mmx(D)560mm

Weight

30KG














未标题-1

Q: How Maker hart quote?
A: We will provide FOB price and all based on minimum order quantity (MOQ).


Q: How can I get your quotation?
A: Please provide us information as below:
1. Item Number.
2. Quantity.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.


Q: How long is the lead time after placing the order?
A: Lead time depends on a number of factors, such as the stock and production status. Usually the sample orders take about AROUND 1 WEEK, and the mass orders take AROUND THREE WEEKS after the order is placed.


Q: How long does the delivery time take?
A: We send our goods from JIANGMEN, Guangdong, and the delivery time depends on the location of your delivery address, and the shipping way will be Express Service, Sea Shipping, Air Shipping for you reference.


Q: What's your standard package?
A:Carton packaging outside, and also can be with flight case if you need.


Q: Could you do OEM/ODM for customers?
A: Yes, from the product design to packaging, our engineers can design exactly as your requirements. Any kind of logo printing or design is available if your order quantity is good .
