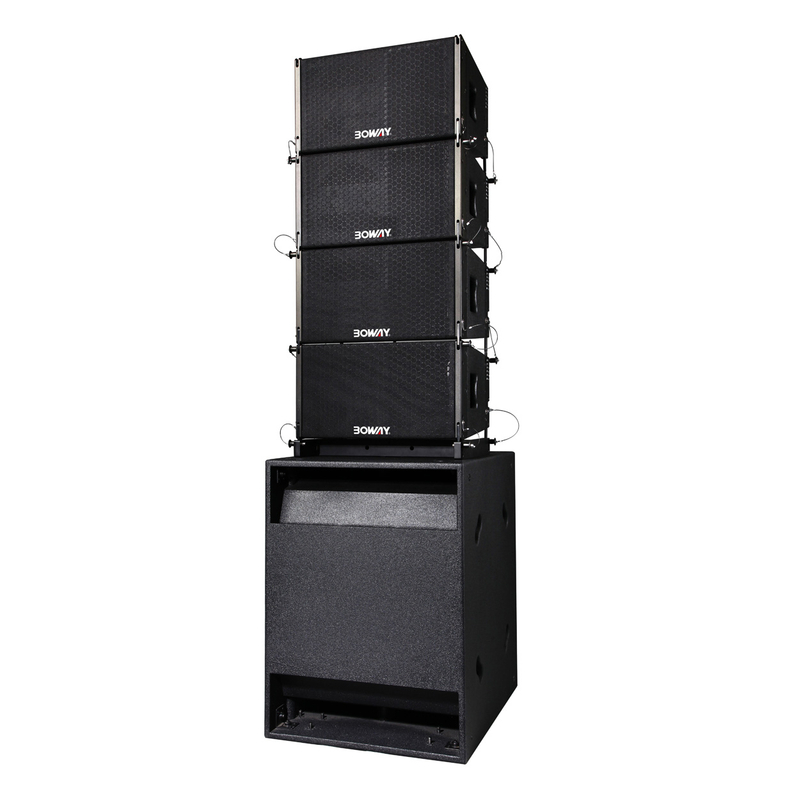

LB-10 & LB-18 10" two way line array speaker set

Compact, high performance two-way line array speaker
High-power system (130dB peak SPL @1M) with 10in LF, and 1.75in HF drivers.
Sanding texture paint for touring jobs

Quantity:
  • LB-10
  • BOWAY
  • 85182200

Description


Feature

Compact, high performance two-way line array speaker

High-power system (130dB peak SPL @1M) with 10in LF, and 1.75in HF drivers.
Sanding texture paint for touring jobs



Applications

Smaller theatres
Houses of worship, Ballrooms, Corporate AV, Houses of worship
Touring theatrical productions



Specifications



Type

Compact two-way line array speaker

Model name

LB-10

Frequency Response

60Hz-20KHz

Drivers

one 10”/3”VC LF Woofers, two 2”/1.75”VC   HF driver

Rated Power

400W(RMS), 800W(Peak)

Sensitivity

100dB @ 1m/1w

Maximum SPL

130dB peak

Nominal Impedance

Finish

Sanding texture paint

Protective Grille

Black perforated steel

Connectors

2×Neutrik NL4

Fittings

Proprietary rigging system

Dimensions(mm)

(W)500mmx(H)280mmx(D)355mm

Weight

17KG



Type

single 18” horn loaded rigging subwoofer-active module

Model name

LB-18

Frequency Response

38Hz-320Hz

Drivers

One 18” bass driver

Rated Power

800W(RMS), 1600W(Peak)

Sensitivity

102dB @ 1m/1w

Maximum SPL

131dB peak

Nominal Impedance

Finish

Sanding texture paint

Protective Grille

Black perforated steel

Connectors

2×Neutrik NL4

Fittings

Top hat fitting

Dimensions(mm)

(W)568mmx(H)768mmx(D)885mm

Weight

61KG











未标题-1

Q: How Maker hart quote?
A: We will provide FOB price and all based on minimum order quantity (MOQ).


Q: How can I get your quotation?
A: Please provide us information as below:
1. Item Number.
2. Quantity.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.


Q: How long is the lead time after placing the order?
A: Lead time depends on a number of factors, such as the stock and production status. Usually the sample orders take about AROUND 1 WEEK, and the mass orders take AROUND THREE WEEKS after the order is placed.


Q: How long does the delivery time take?
A: We send our goods from JIANGMEN, Guangdong, and the delivery time depends on the location of your delivery address, and the shipping way will be Express Service, Sea Shipping, Air Shipping for you reference.


Q: What's your standard package?
A:Carton packaging outside, and also can be with flight case if you need.


Q: Could you do OEM/ODM for customers?
A: Yes, from the product design to packaging, our engineers can design exactly as your requirements. Any kind of logo printing or design is available if your order quantity is good .
