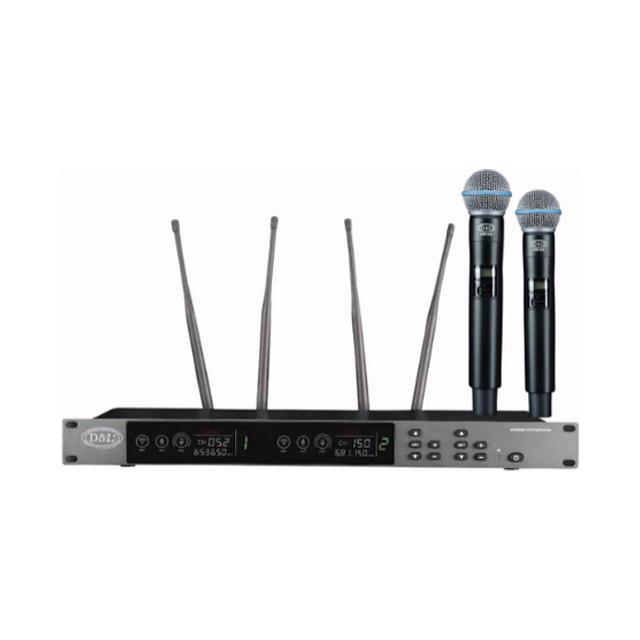

The DW-349 PRO is a two-channel true diversity UHF wireless microphone system comprising a 19-inch 1U receiver and two handheld transmitters, intended for stage performance, conference halls and houses of worship.
| Quantity: | |
|---|---|
DW-349PRO
D&L
85181000.90
Key Features
» | Two independent UHF channels, 640–695 MHz, 200 selectable frequencies |
» | True diversity reception – two complete independent RF paths per channel with automatic real-time path switching |
» | Four removable TNC 50 Ω antenna connectors, two per channel, for directional antennas and external RF distribution |
» | DPLL frequency control with infrared transmitter synchronisation from the receiver |
» | Selectable 10 mW / 30 mW RF transmit power – battery life or coverage |
» | Receiver sensitivity better than –90 dBm, up to 200 m working range in clear line of sight |
» | Integrated companding circuit – signal-to-noise above 100 dB, THD below 0.5 % |
» | Two balanced XLR outputs, one per channel, plus a 6.35 mm mixed output |
» | Twin symmetrical receiver displays: frequency, channel, RF level, AF level and status |
» | Metal alloy handheld bodies with quick-release AA battery compartments and LCD display |
» | Steel receiver chassis with brushed aluminium front panel, 19" 1U per EIA-310 |
