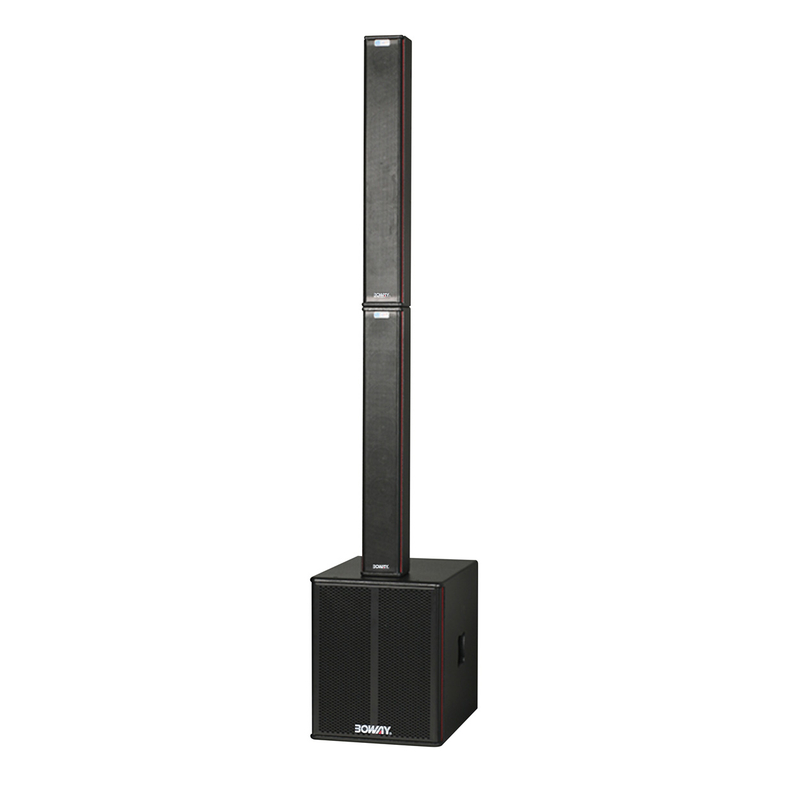

BW-604 & S15P Column speaker set

A column speaker system which composed of 6 pcs 4” woofer with 72mm magnet,
Its cabinet features integrated quick lock mechanics to provide a perfect stability
During live events or easy assembling for permanent installation, with the addition
Of active S15P subwoofer, this system becomes a powerful, compact and high
Definition live sound system.

Quantity:
  • BW-604
  • BOWAY
  • 85182200

Description


Feature

A column speaker system which composed of 6 pcs 4” woofer with 72mm magnet,

Its cabinet features integrated quick lock mechanics to provide a perfect stability

During live events or easy assembling for permanent installation, with the addition

Of active S15P subwoofer, this system becomes a powerful, compact and high

Definition live sound system.



Applications

Smaller theatres
Houses of worship, Ballrooms, Corporate AV, Houses of worship
Touring theatrical productions



Specifications



Type

Compact column  speaker

Model name

BW-604

Frequency Response

100Hz-18KHz

Drivers

six 4" LF woofers

Rated Power

300W(RMS), 600W(Peak)

Sensitivity

95dB @ 1m/1w

Maximum SPL

120dB peak

Nominal Impedance

Finish

Waterproof paint

Protective Grille

Black perforated steel

Connectors

2×Neutrik NL4

Dimensions(mm)

(W)140mmx(H)885mmx(D)160mm

Weight

9KG

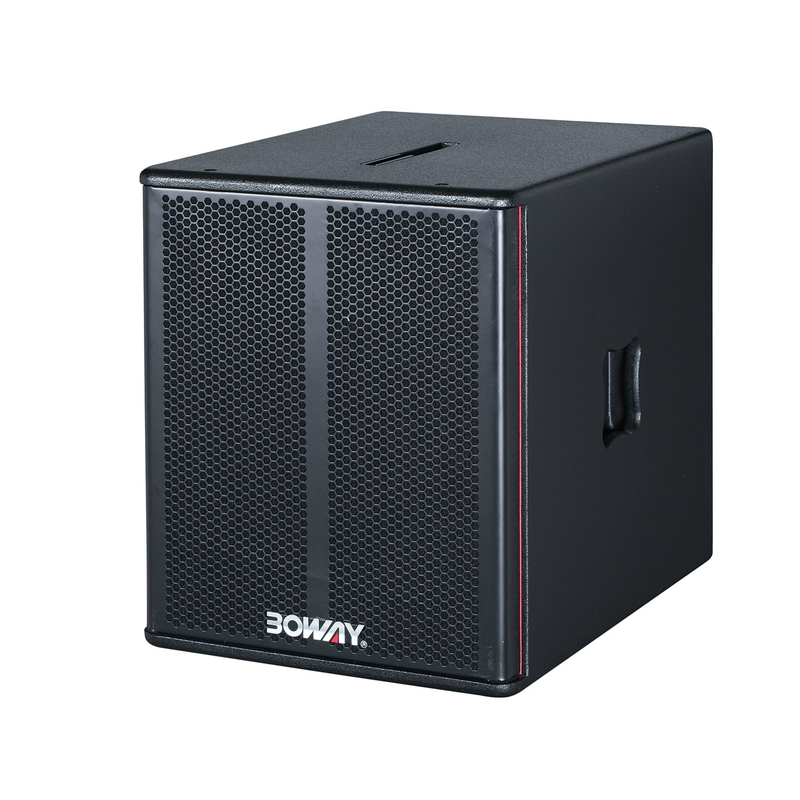

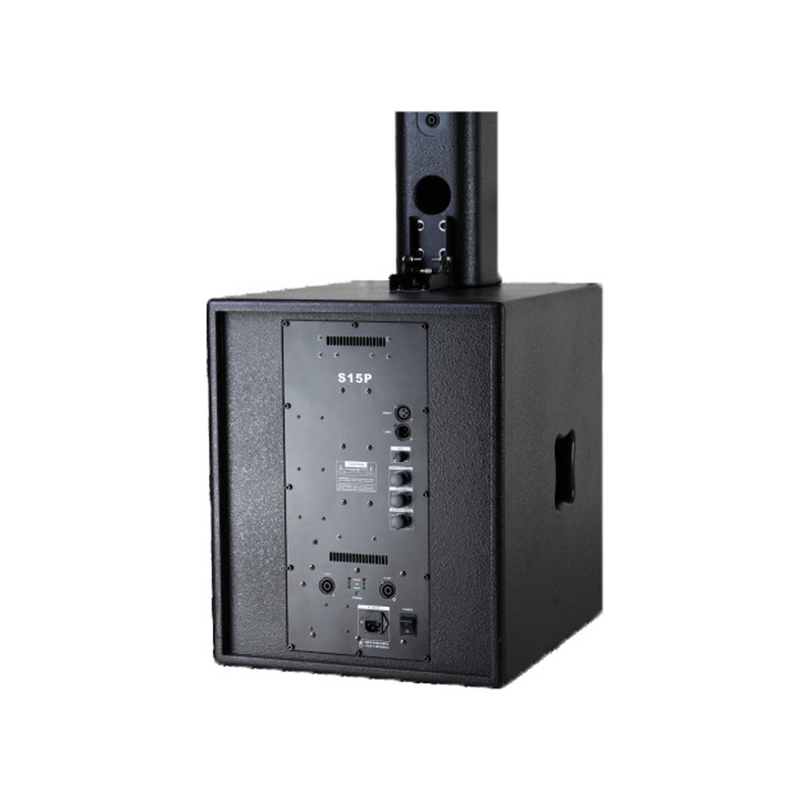

Type

single 15” active subwoofer

Model name

S15P

Frequency Response

40Hz-600Hz

Drivers

One 15” bass woofer

Rated Power

500W(RMS), 1000W(Peak)

Sensitivity

96dB @ 1m/1w

Maximum SPL

122dB peak

Nominal Impedance

Finish

Waterproof paint

Protective Grille

Black perforated steel

Connectors

2×Neutrik NL4

Dimensions(mm)

(W)450mmx(H)550mmx(D)600mm

Weight

44KG
