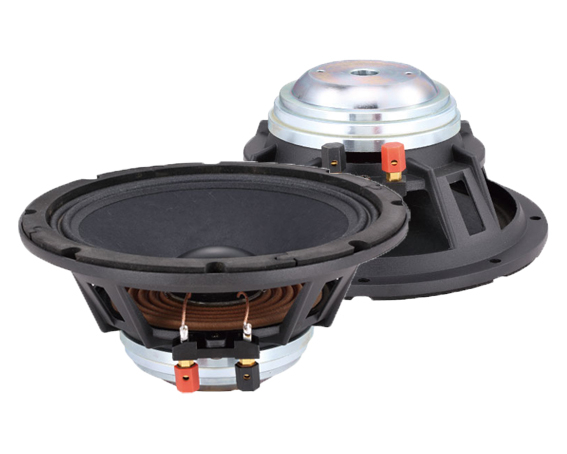

8-50-N102-B16, 8" Neodymium Low Frequency Transducer, 50mm voice coil

 1.97 inch inside/outside copper voice coil
 300 Watt continuous program power handling
 96 dB sensitivity
 79.5Hz-5KHz frequency range
 BL of 16.3 Txm to provide a faster and accurate low frequency
Availability:
Quantity:
  • 8-50-N102-B16

  • BOWAY

  • 85182900


PRECISION TRANSDUCERS

8-50-N102-B16

WOOFER



FEATURES

n  1.97 inch inside/outside copper voice coil

n  300 Watt continuous program power handling

n  96 dB sensitivity

n  79.5Hz-5KHz frequency range

n  BL of 16.3 Txm to provide a faster and accurate low frequency




SPECIFICATIONS (General specifications)


NOMINAL DIAMETER: 8 inch / 200 mm                             RATED IMPEDANCE: 16 ohm

AES POWER HANDLING: 150 W                                         MAX. POWER HANDLING: 300 W

SENSITIVITY: 96.0 dB                                                             FREQUENCY RANGE 79.5 Hz-5KHz

MINIMIM IMPEDANCE: 13 ohm                                             VOICE COIL DIAMETER: 1.97 inch / 50 mm

VC WINDING MATERIAL: Copper                                         MAGNETS: Neodymium

OVERALL DIAMETER: 210 mm / 8.27 inches                       BOLT CIRCLE DIAMETER: 197 mm / 97.76 inch

 BAFFLE CUT-OUT DIAMETER: 188 mm / 7.4 inch





Thiele - small parameters


RESONANCE FREQUENCY (FS): 79.5 Hz                 DC RESISTANCE (RE): 11 ohm

MECHANICAL FACTOR: 10 Qms                          ELECTRICAL FACTOR (QES): 0.33 Qes

TOTAL FACTOR: 0.32 Qts                                        BL FACTOR (BL): 16.3 T x m

EFFECTIVE MOVING MASS (MMS): 16.3 g          EQUIVALENT CAS AIR LOADED (VAS): 14.6 liters

EFFETTIVE PISTON AREA (SD): 0.0206 m2             VOICE COIL INDUCTANCE @ 1KHZ (LE1K): 0.31MH
